Cambria Sliding Patio Doors are crafted for smooth operation and a slim design. Our sliding patio doors have a slimline sash and frame to maximize viewing area and light exposure. Sliding patio doors are reinforced with steel throughout to provide support and security. Our wheelbase is supported by the steel core to prevent the weight of the sash from pushing the wheels into the vinyl which is a common issue with competitors non-reinforced wheels. A proprietary aluminum triangle monorail lifts the sash off the track to minimize friction, while our high strength steel (or optional stainless steel) rollers glide across the rail. Heavy duty 2” wheels with bearings can hold 125 LBS each and with at least 8 per door they effortlessly slide the sash over the track. Our concave wheel design ensures there is no slipping from the track like other companies flat or rounded wheelbases, making for a smooth, maintenance-free ride every time.
- Flat and sculptured grids in a variety of patterns
- Standard and custom sizes
- Factory stacking and mulling options in many different combinations
- May be ordered to meet ENERGYSTAR® requirements
- Lifetime Warranty (Does not include glass breakage)
Two Color Options

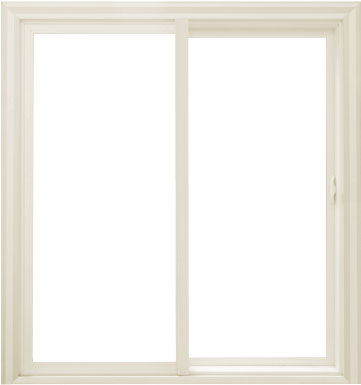

White and Almond
Features & Benefits
Multi-chambered heavy duty extruded vinyl for structural strength and durability

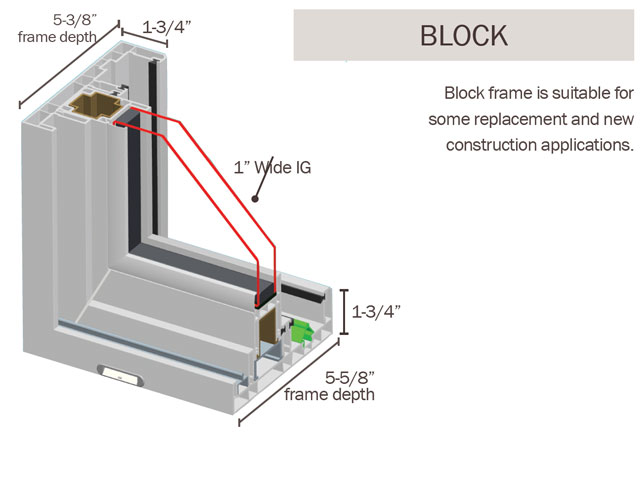

Frame depth is 5-5/8”
Fusion welded corners for strength and stability
1” IG unit featuring Duralite spacer with warm edge technology for energy efficiency
Door panels feature a multi-channel extrusion for increased energy performance and strength
Steel and aluminum reinforcement for exceptional structural integrity
Heavy duty aluminum rail system offers smooth operation
Steel galvanized adjustable rollers with steel housing for added durability
Ergonomic handle with dual point locking system for ease of use and tight seal against elements infiltration

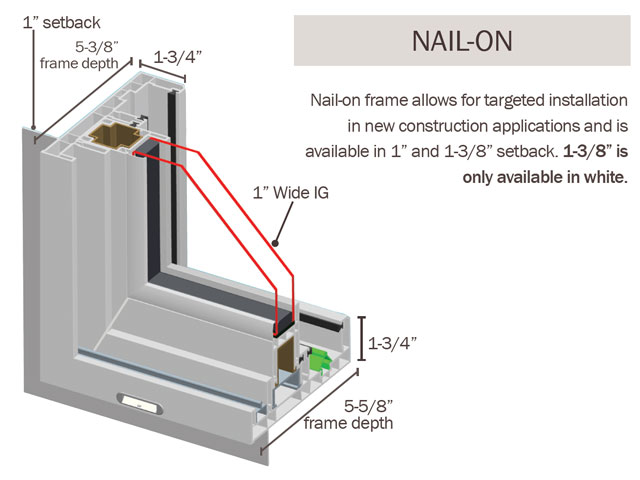

1” and 1-3/8 nailing fin set back for targeted installation

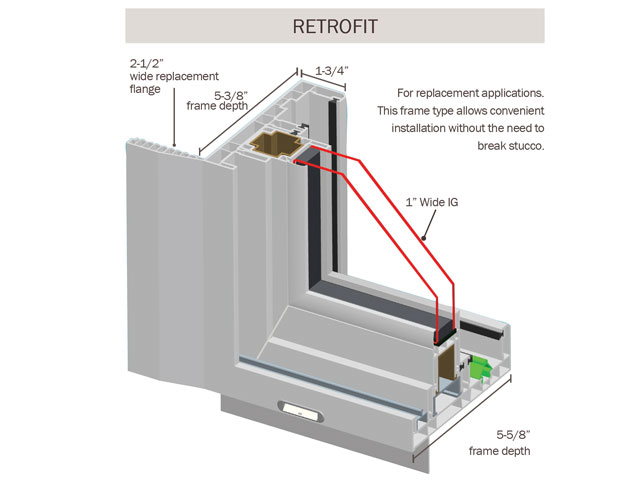

2-1/2 replacement flange designed with heavy-duty dual wall
Argon gas filled chamber for increased energy
Carefully Selected High-Performance Hardware and Parts

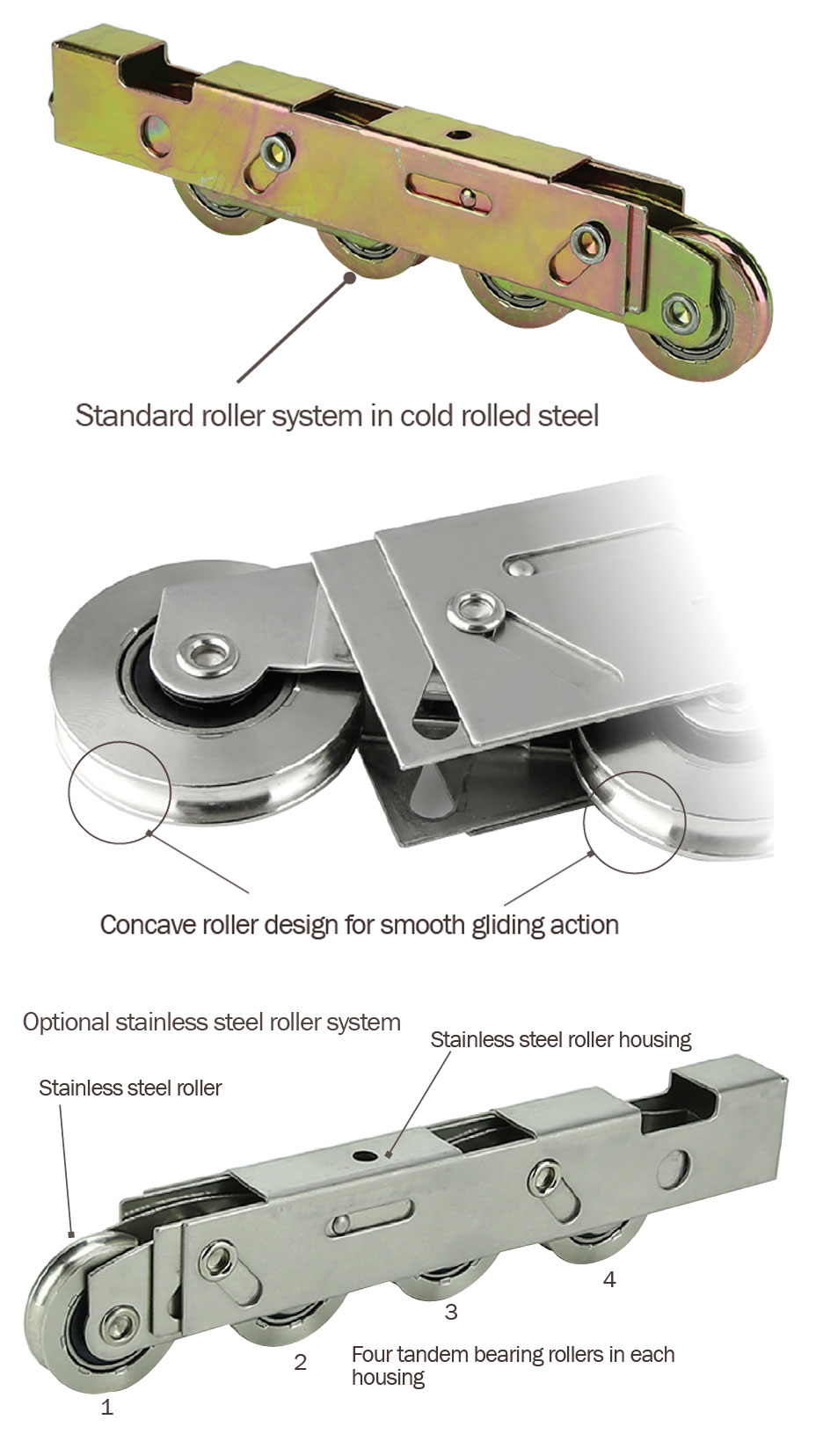

Four Wheel Tandem Roller System
Cambria Patio Doors feature four- wheel tandem roller system in cold rolled steel housing and rollers, which provide long lasting smooth operation

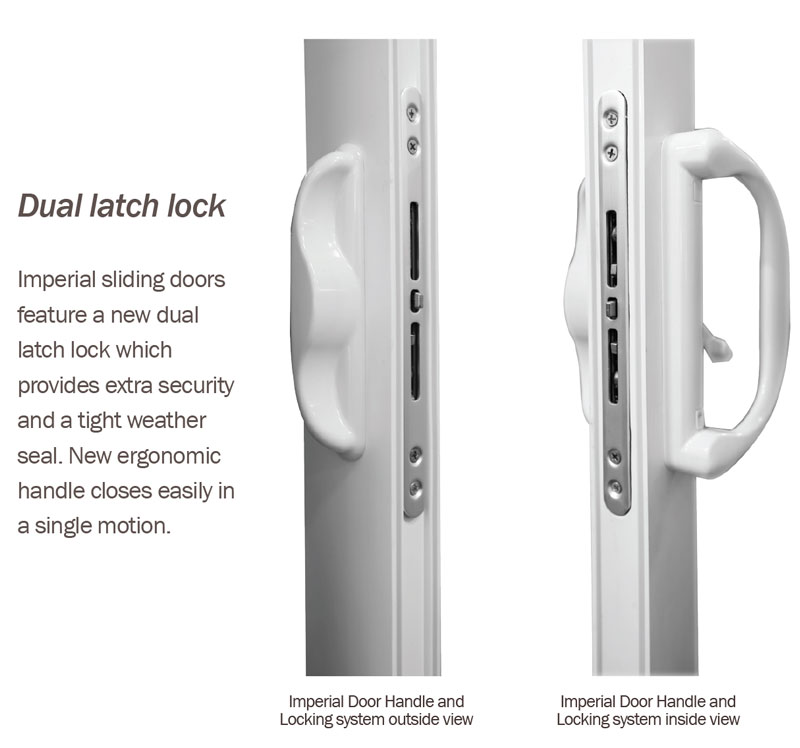

Dual Latch Lock
Cambria Patio Doors feature a new dual latch lock which provides extra security and a tight weather seal. New ergonomic handle closes easily in a single motion.

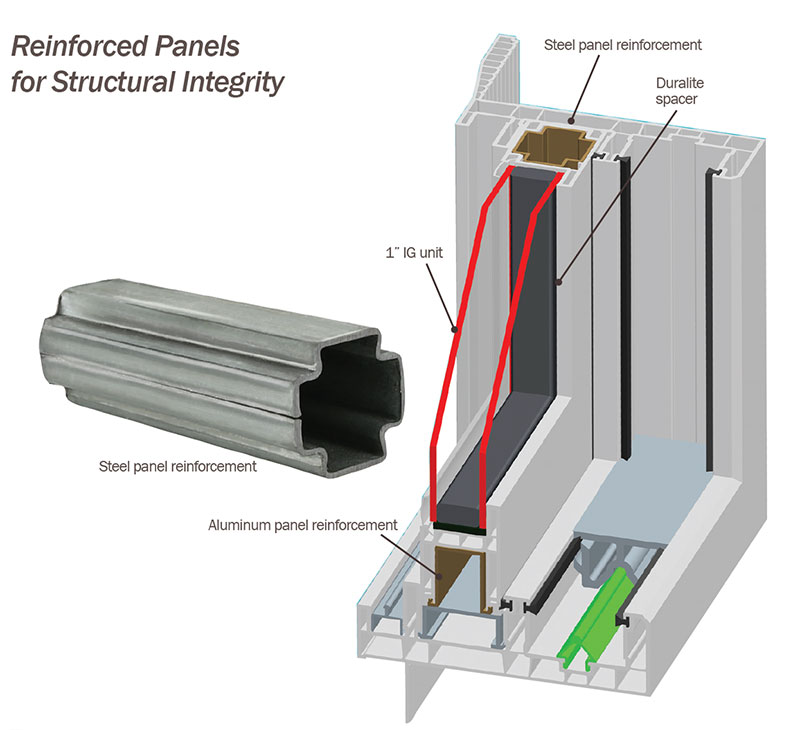

Reinforced Panels for Structural Integrity

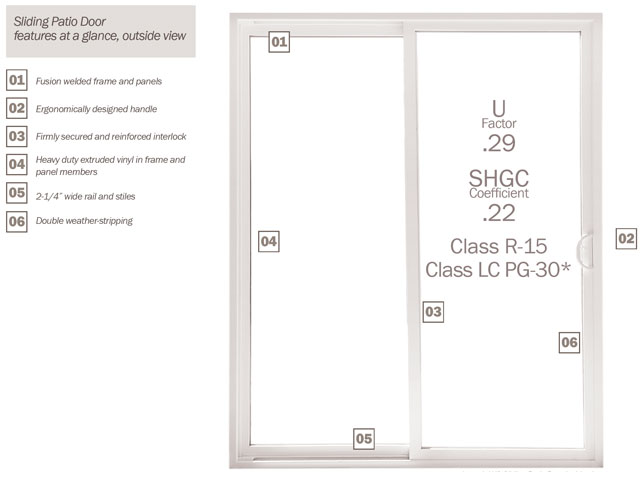

Cambria Sliding Patio Doors are built strong to last and protect your home or business. Our doors features
- Fusion welded frame and panels
- Ergonomically designed handle
- Firmly secured and reinforced interlock
- Heavy duty extruded vinyl in frame and
- panel members
- 2-1/4” wide rail and stiles
- Double weather-stripping
